Making concrete work more effective

2/27/2024

Concrete Pump Concrete Pump

Until the early 20th century, concrete was mixed on the job site and transported from the cement mixer to the formwork, either in wheelbarrows or in buckets lifted by cranes which required a lot of time and labour.

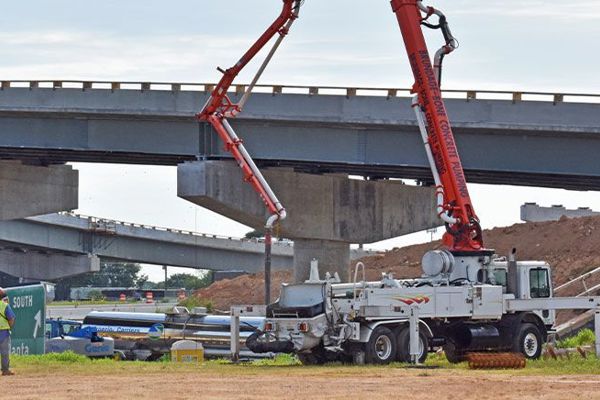

A concrete pump is used to transfer liquid concrete from the truck or semi-trailer directly to the construction site. Also known as a boom concrete pump because it uses a remote-controlled articulating robotic arm (called a boom) to place concrete accurately.

The concrete pump truck perfectly combines the functions of driving, pumping and distributing the concrete together with the boom which has the functions of folding and turning. The boom is flexible and fast, while the support leg occupies a small space, which means that the whole vehicle is easy and flexible to move.

Demanding hydraulics

The concrete pump trucks needs to be durable, reliable and effective. This makes high demands on the hydraulic components, for which Sunfab’s renowned quality and high-performance hydraulic pumps and motors are the perfect match.

Sunfab offers several options to suit your specific system needs
Sunfab is your supplier of a wide range of single flow hydraulic pumps, adapted and optimised for a wide range of different applications. Sunfab pumps are available in sizes from 12 cm³ to 130 cm³, and can handle working pressures of up to 400 bar.

The Sunfab Dual Flow Pump is ideal for vehicles that require two different flow rates. The range of fixed displacement dual flow pumps SCPD and SLPD comprises 10 different sizes from 20/20 cm³ up to 76/76 cm³. The SCPD dual flow pumps are of bent-axis design, the SLPD pumps are of inline design, both very effective and powerful. Sunfabs dual flow pump is ideal for vehicles which require two different flows.

Sunfab also offer variable pumps with a displacement of 62, 92, 112 and 130 cm³. A working pressure of up to 450 bar, and flexibility via different types of regulators and tandem assembly. This enables the use of this type of pump in almost all applications where a variable oil flow is required.

Sunfab’s hydraulic motors are available in SAE, ISO and DIN-standard as well as with cartridge flange. Displacements range from 10 cm³ to 130 cm³ with a large number of choices regarding shafts, mounting flanges and connections. Sunfab’s motors are known for being able to handle high speeds and high working pressures, up to 400 bar (5800 psi), and power outputs of up to 285 kW.
