SAP 012-130 ISO

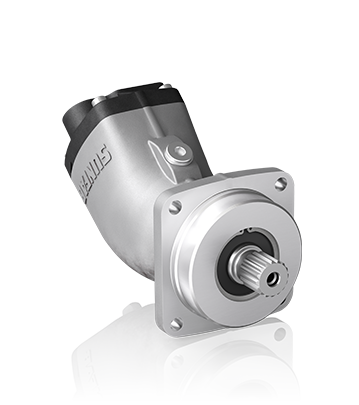

SAP 012-064 ISO is a series of light weight casing piston pumps with a fixed displacement for demanding mobile hydraulics.
SCP 012-130 ISO covers the entire displacement range 12-64 cm3/rev. at a maximum pressure of 400 bar. It is a modern, compact pump which meets the market’s high demands on flow performance, pressure, efficiency and small installation dimensions. The pump is internally drained.
Product Benefits
Light weight metal casing design
Smooth operation over the entire speed range
Long life due to high demands on material selection, such as bearings, seals, etc
Corrosion free light metal-housing
Less heat generation due to better ability to dissipate heat through housing
Technical specifications
| SAP 012-064 ISO | 012 | 017 | 025 | 034 | 040 | 047 | 056 | 064 | |
|---|---|---|---|---|---|---|---|---|---|
| Theoretical oil flow l/min at pump speed | |||||||||
| rpm | 500 1000 1500 |
6 13 19 |
9 17 26 |
13 25 38 |
17 34 51 |
21 41 62 |
24 47 71 |
28 57 85 |
32 64 95 |
| Displacement | |||||||||
| cm3/rev | 12.6 | 17.0 | 25.4 | 34.2 | 41.2 | 47.1 | 56.7 | 63.6 | |
| Max pump speed | |||||||||
|
continuous intermittent |
rpm | 2300 3000 |
2300 3000 |
2300 3000 |
2300 3000 |
1900 2500 |
1900 2500 |
1900 2500 |
1900 2500 |
| Max working pressure | |||||||||
| bar | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | |
| Weight | |||||||||
| kg | 7.0 | 7.0 | 7.6 | 7.6 | 11.3 | 11.3 | 11.3 | 11.3 | |
| Tare-weight torque (M) | |||||||||
| Nm | 6.5 | 6.5 | 6.6 | 6.6 | 12 | 12 | 12 | 12 | |
| Direction of rotation | |||||||||
| Left (L) or Right (R) | |||||||||
